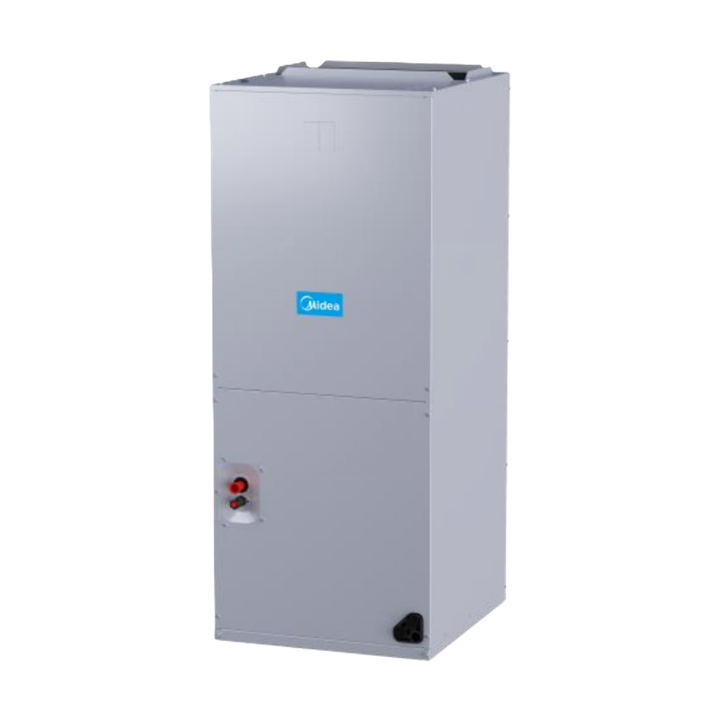

Midea TXV Air Handler – 5 Ton

Standard Features

• High heat-transfer efficiency and low static-pressure drop A-shaped coil.
• Foil-faced insulation to prevent energy loss through the cabinet.
• Factory-sealed cabinet certified to achieve ≤2% air leakage rate at 1.0-inch water column.
• Multi-stage blower speed control to align with varying capacity demands.
• 4-position installation: Upflow, Horizontal Right, Downflow, Horizontal Left.
• Horizontal and vertical condensate drain pans (standard); primary and secondary condensate fittings.
• Field-installed electric heater kits (5/7.5/10/15/20 kW) available as accessories. Multiple electrical entry locations.
• Dual front panel with slide-track volute coil.
• TXV with threaded connections for simplified maintenance.
• Tool-free access integrated filter rack.
• Easy-to-braze copper evaporator connections.
• TXV designed for convenient piston replacement.
• All-aluminum heat exchanger enhances product longevity.
• Advanced internal welding reduces corrosion potential.
• AHRI and ETL certified.
• Polymer condensate pan with UVC inhibitor.
• Fully insulated cabinet design R454B refrigerant sensor ensures safe operation.
